New Holland T4040 Tests


New Holland T4040 tractor photo
2008 - 2011
T4000 Series
Utility tractor
Series map:
T4030
T4040
T4050
76.0hp
84.0hp
95.0hp
Tractor Tests
OECD 2477: diesel 12-speed 4WD
OECD 2476: diesel 16-speed 4WD
OCED Tractor Test 2477

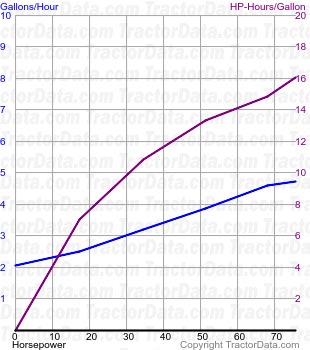

T4040 fuel use from test 723
OCED Tractor Test 2477
Diesel 12-speed 4WD
July 2008 - September 2008,
Link: OCED Tractor Test 2477 file
PTO performance
Power at rated engine speed75.2 hp
56.1 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated PTO speed74.6 hp
55.6 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power63.2 hp
47.1 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 3M used for power test.
Max pull6,385 lbs
2896 kg
Gear 3L used for pull test.
OCED Tractor Test 2476
T4040 fuel use from test 724
OCED Tractor Test 2476
Diesel 16-speed 4WD
July 2008 - September 2008,
Link: OCED Tractor Test 2476 file
PTO performance
Power at rated engine speed75.4 hp
56.2 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated PTO speed74.3 hp
55.4 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power64.0 hp
47.7 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 3MH used for power test.
Max pull7,285 lbs
3304 kg
Gear 1MH used for pull test.
