New Holland T4030
|
|
| Production | |
| Manufacturer | New Holland |
| Utility tractor | |
| Built in Jesi, Italy | |
| Variants | |
| T4030 | standard chassis |
| T4030F | narrow chassis |
| T4030V | ultra-narrow chassis |
| TK4030V | crawler |
| Farmall 75C | similar CaseIH model |
| New Holland T4030 Engine | |
| FPT 3.2L 4-cyl diesel | |
| Fuel tank | 21.6 gal 81.8 L |
| 19.8 gal (Deluxe) 74.9 L | |
 Engine details ... | |
| New Holland T4030 Transmissions | |
| 12-speed mechanical shuttle | |
| 16-speed mechanical shuttle | |
| 16-speed power shuttle | |
 Transmission details ... |
| New Holland T4030 Power | |
| Engine (gross) | 76 hp 56.7 kW |
| PTO (claimed) | 62 hp 46.2 kW |
| Drawbar (tested) | 57.1 hp 42.6 kW |
| PTO (tested) | 66.4 hp 49.5 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Platform with ROPS. Cab on deluxe model with heat and air-conditioning. | |

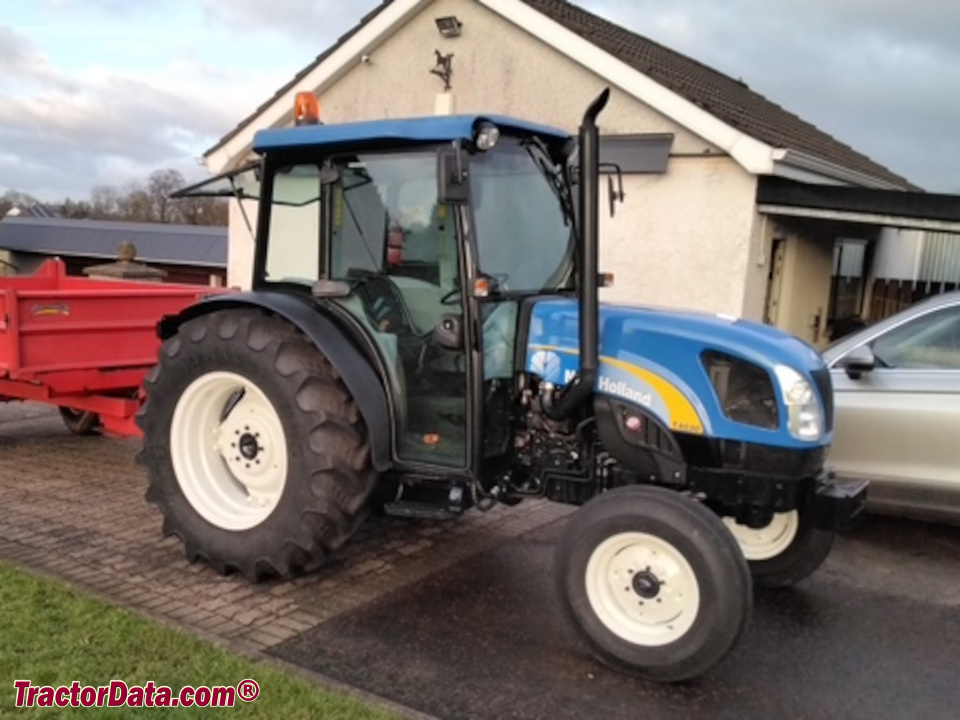

| Photos | |
 | |
 New Holland T4030 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2755 psi 190.0 bar |
| Valves | 1 to 5 |
| Pump flow | 12.8 gpm 48.4 lpm |
| 16.1 gpmOptOptional 60.9 lpm | |
| Steering flow | 7.4 gpm 28.0 lpm |
| 9.4 gpm (with power shuttle) 35.6 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift (at 24"/610mm) | 3962 lbs 1797 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | 280mm mechanical dry disc |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2196 |
| Dimensions & Tires | |
| Wheelbase | 80.2 inches (4WD) 203 cm |
| 82.6 inches (4WD deluxe) 209 cm | |
| 83.3 inches (2WD) 211 cm | |
| 85.6 inches (2WD deluxe) 217 cm | |
| 94.8 inches (SuperSteer) 240 cm | |
| Weight | 5776 to 6768 pounds |
| Front tire | 11.2R24 |
| Rear tire | 16.9R30 |
 Full dimensions and tires ... | |
| New Holland T4030 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 85 |
| Battery CCA | 730 |
| Battery volts | 12 |
| References | |
 | |
| T4000 Series Utility Tractors published in 2008, by New Holland |
