| | 2009 - 2013 |
| MT800C Series | | Agricultural Crawler tractor |
|
Series map:
MT865C
MT875C
525.0hp
585.0hp
| Engine Detail |
| Caterpillar C18 ACERT |
| turbocharged aftercooled diesel |
| 6-cylinder 24-valve |
| liquid-cooled |
| Displacement | 1,106 ci
18.1 L
|
| Bore/Stroke | 5.71x7.2 inches
145 x 183 mm
|
| Emissions | Tier III
|
| Power (gross) | 585 hp
436.2 kW
|
| Maximum Power | 631 hp
470.5 kW
|
| Fuel system | mechanical electric injector unit (MEUI)
|
| Rated RPM | 2100
|
| Starter | electric
|
| Starter volts | 12
|

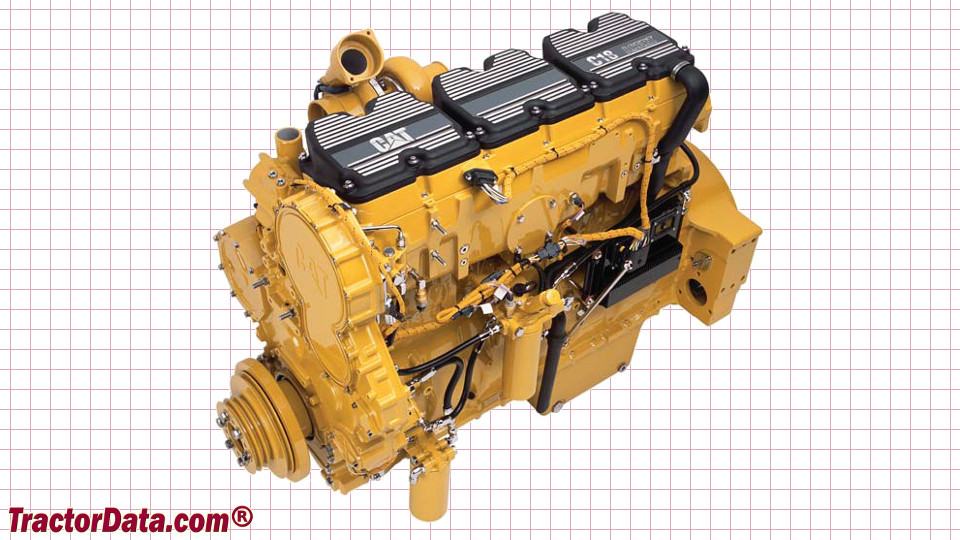

| Challenger MT875C Engine |
 |
