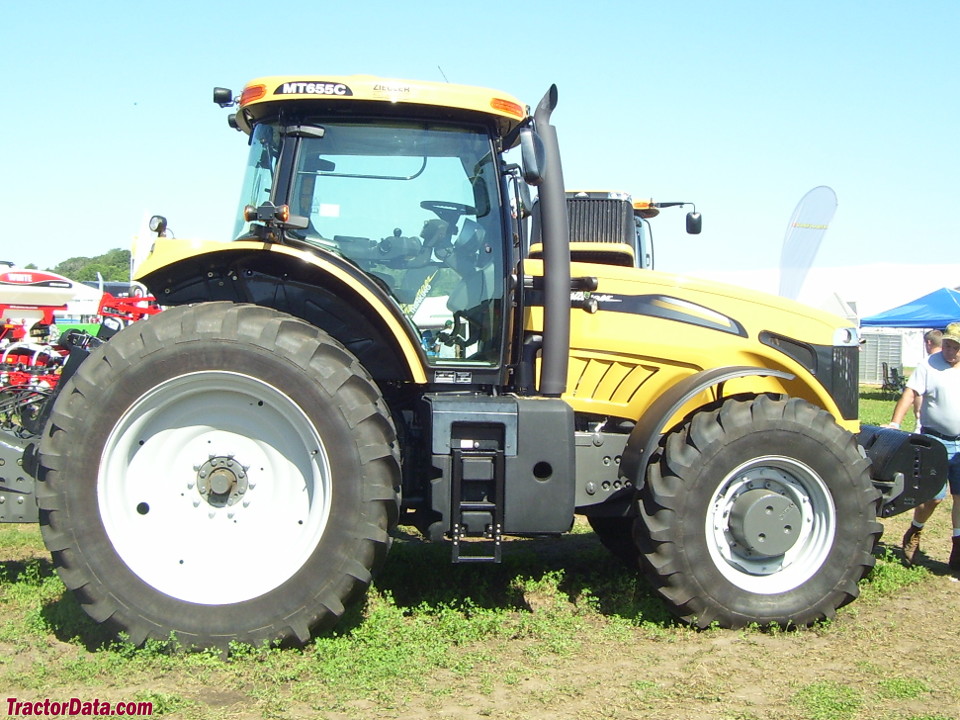

Challenger MT655C
| | 2009 - 2010 |
| MT600C Series | | Row-Crop tractor |
|
| Production |
| Manufacturer | Challenger (a part of AGCO)
|
| Row-Crop tractor |
| Built in Beauvais, France |
| Original price was $216,780 in 2009 |
| Variants |
| 8660 | similar Massey Ferguson model
|
| Challenger MT655C Power |
| Engine (gross) | 265 hp
197.6 kW
|
| PTO (claimed) | 225 hp
167.8 kW
|
| Drawbar (tested) | 195.1 hp
145.5 kW
|
| PTO (tested) | 269.4 hp
200.9 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | planetary
|
| Differential lock | electro-hydraulic front and rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control. |
| Hydraulics |
| Type | closed center load sensing
|
| Pressure | 2,901 psi
200.0 bar
|
| Valves | 4 to 6
|
| Pump flow | 26.4 gpm
99.9 lpm
|
| Total flow | 46.2 gpm
174.9 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Control | electronic lower-link draft sensing
|
| Rear lift (at ends) | 26,460 lbs
12002 kg
|
| Rear lift (at 24"/610mm) | 21,336 lbs
9678 kg
|
| Front lift (at ends) | 11,020 lbs
4998 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 1000E/1000 (1.75)
|
| | 540E/1000 (1.375)OptOptional
|
| Front PTO | independent OptOptional
|
| Front PTO Type | 1000 (1.375)
|
| MT655C Serial Number Location |
 |
| Serial number plate below the tractor cab door on the right side. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 240 *Two 120A alternators.
|
| Batteries | 2
|
| Battery CCA | 775
|
| Battery volts | 12
|
| References |
 |
| Challenger - The New MT600C Series published in 2009, by AGCO |
