| | ???? - 2004 |
| TM Series | | Compact Utility tractor |
|
Series map:
TM215
TM217
15.5hp
17.0hp
| Transmission options |
| 6-speed unsynchronized |
| hydrostatic |
| Transmission |

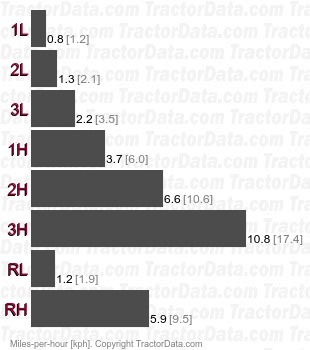

| Type | unsynchronized
|
| Gears | 6 forward and 2 reverse
|
| Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range. |
| Speeds |
|
| Transmission |

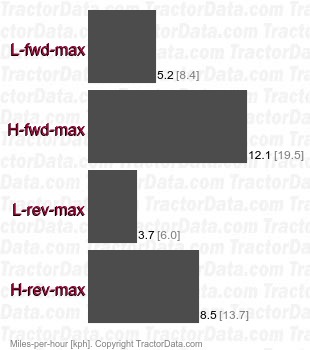

| Type | hydrostatic
|
| Gears | infinite forward and reverse (2-range)
|
| Oil capacity | 15.9 qts
15.0 L
|
| Speeds |
|
