Iseki TU217 Engine


Iseki TU217 tractor photo
1989 - 1992
TU 7 Series
Compact Utility tractor
Series map:
TU197
TU217
TU237
13.9kw
15.4kw
16.9kw
Engine Detail
Isuzu E3AG1
diesel
3-cylinder
liquid-cooled
Displacement87.2 ci
1.4 L
Bore/Stroke3.307x3.385 inches
84 x 86 mm
Power20.7 hp
15.4 kW
Rated RPM2500
Starterelectric
Starter volts12
Oil capacity4.5 qts
4.3 L
Coolant capacity7.4 qts
7.0 L

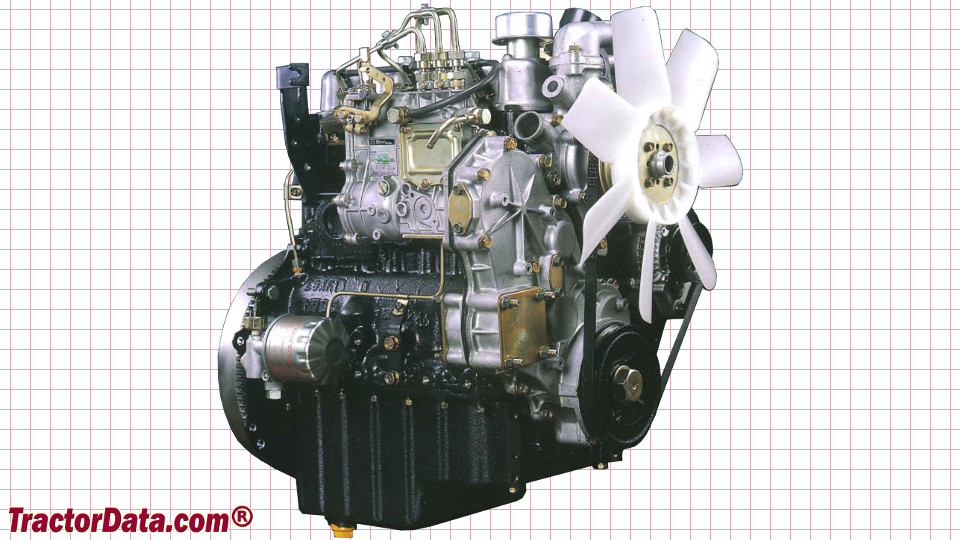

Iseki TU217 Engine
Iseki TU217 engine image
