| | 1980 - 1985 |
| TL-01 Series | | Compact Utility tractor |
|
Series map:
TL2501
TL2701
18.4kw
19.8kw
| Engine Detail |
| Isuzu E3AD1 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 91.4 ci
1.5 L
|
| Bore/Stroke | 3.385x3.385 inches
86 x 86 mm
|
| Power | 26.6 hp
19.8 kW
|
| Rated RPM | 2600
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 7.4 qts
7.0 L
|

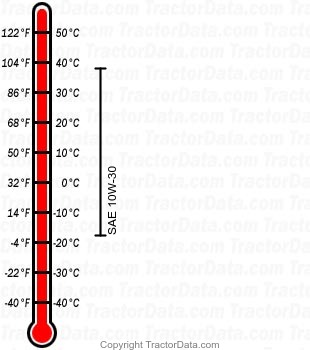

| Engine Oil |
|
| Oil capacity | 5.1 qts
4.8 L
|

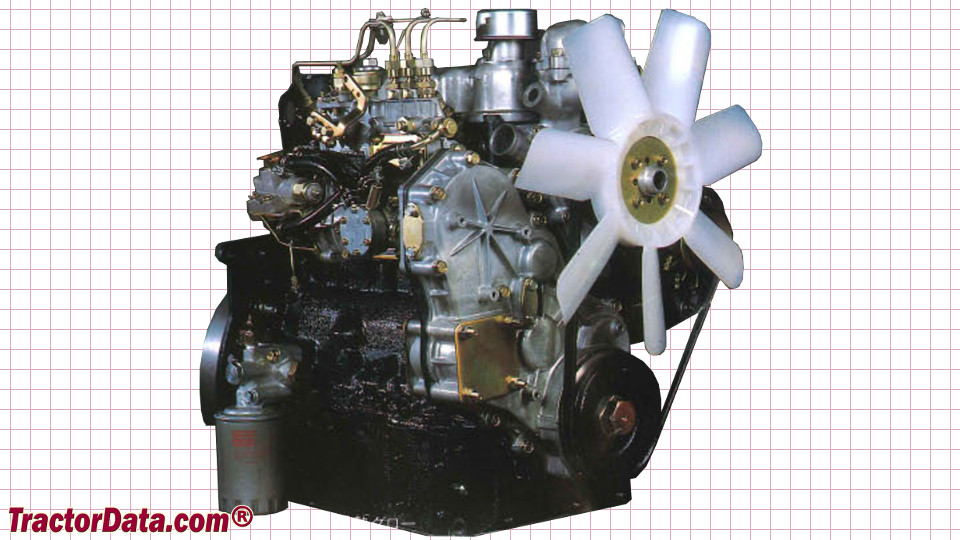

| Iseki TL2701 Engine |
 |
