Iseki TL2500
|
|
| Production | |
| Manufacturer | Iseki |
| Compact Utility tractor | |
| Variants | |
| TL2500F | 4WD |
| Iseki TL2500 Engine | |
| Isuzu 1.3L 3-cyl diesel | |
| Fuel tank | 7.1 gal 26.9 L |
 Engine details ... | |
| Iseki TL2500 Transmissions | |
| 9-speed gear | |
| 18-speed creeper | |
 Transmission details ... |
| Iseki TL2500 Power | |
| Engine | 25 hp 18.6 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Open operator station. |

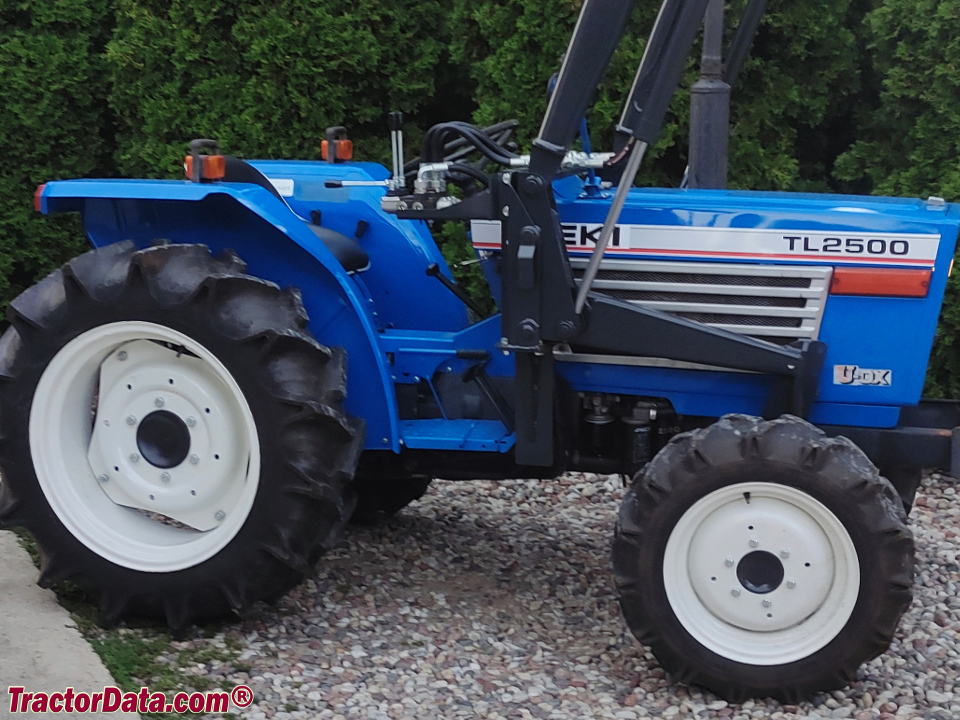

| Photos | |
 | |
 Iseki TL2500 photos... | |
| Tractor hitch | |
| Rear Type | JIS1 |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 553@2600 |
| 731@2600 | |
| 906@2600 | |
| 1280@2600 | |
| Dimensions & Tires | |
| Wheelbase | 62.2 inches 157 cm |
| Weight | 2161 to 2359 pounds |
| Front tire | 5.00-15 |
| 2WD Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

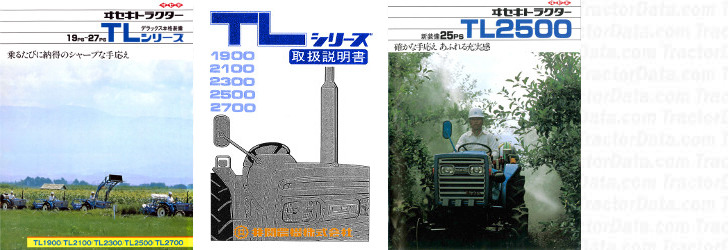

| References | |
 | |
| TL published in 1984, by Iseki | |
| TL1900 - TL2700 | |
| TL2500 published in 1984, by Iseki |
