Iseki TL2500 Engine


Iseki TL2500 tractor photo
1980 - 1985
TL Series
Compact Utility tractor
Series map:
TL2300
TL2500
TL2700
17.2kw
18.6kw
20.1kw
Engine Detail
Isuzu E3AE1
diesel
3-cylinder
liquid-cooled
Displacement79.1 ci
1.3 L
Bore/Stroke3.15x3.386 inches
80 x 86 mm
Power25 hp
18.6 kW
Rated RPM2600
Starterelectric
Starter volts12
Coolant capacity7.4 qts
7.0 L
Engine Oil

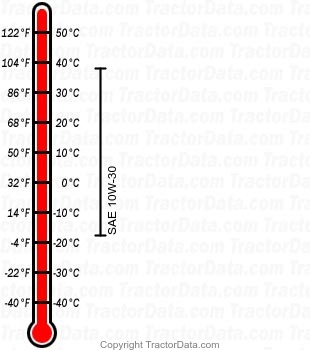

TL2500 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
