Tractors > Iseki > TL2101

Iseki TL2101 Engine



Iseki TL2101 tractor photo
1980 - 1985
TL-01 Series
Compact Utility tractor
Series map:
TL1901
TL2101
TL2301
13.9kw
15.4kw
16.9kw
Engine Detail
Isuzu E3AG1
diesel
3-cylinder
liquid-cooled
Displacement87.2 ci
1.4 L
Bore/Stroke3.307x3.385 inches
84 x 86 mm
Power20.7 hp
15.4 kW
Rated RPM2600
Starterelectric
Starter volts12
Coolant capacity7.4 qts
7.0 L
Engine Oil

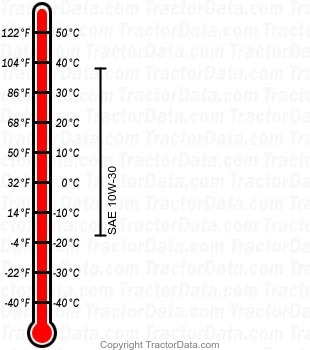

TL2101 diesel engine oil chart
Oil capacity5.1 qts
4.8 L
Iseki TL2101 Engine

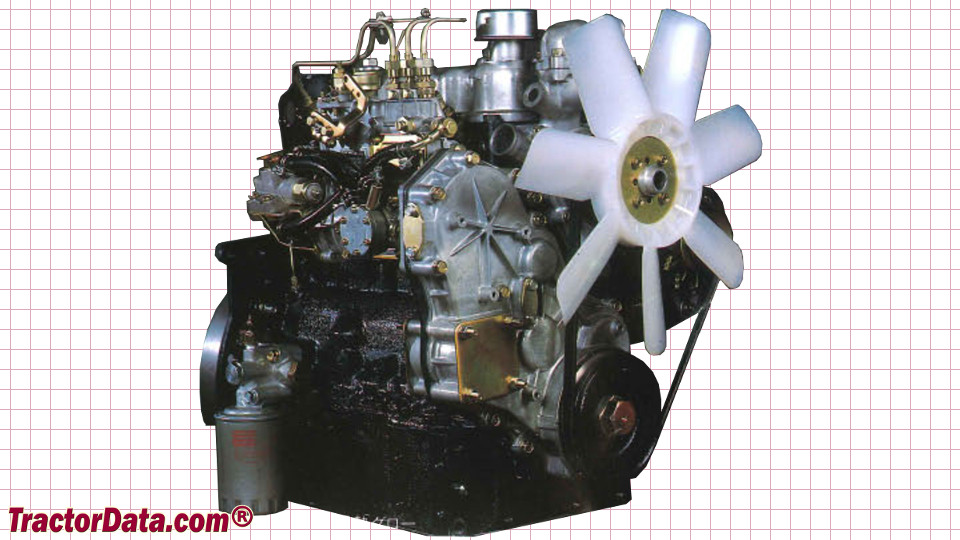

Iseki TL2101 engine image
