Iseki TL2100 Transmission


Iseki TL2100 tractor photo
1980 - 1985
TL Series
Compact Utility tractor
Series map:
TL1900
TL2100
TL2300
14.2kw
15.7kw
17.2kw
Transmission options
9-speed gear
18-speed creeper
Transmission
Typegear
Gears9 forward and 3 reverse
Oil capacity33.8 qts
32.0 L
Three gears (1-3) plus reverse (R) in three ranges.
Speeds

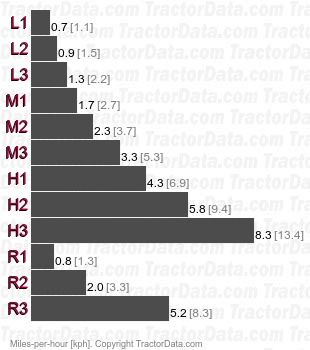

TL2100  gear speeds
Transmission
Typecreeper
Gears18 forward and 6 reverse
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range.
Speeds

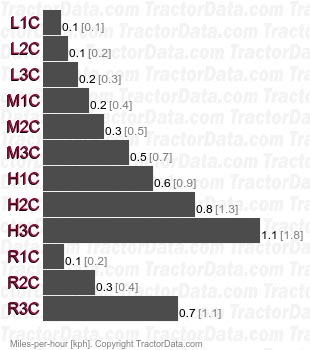

TL2100  creeper speeds
