Engine Detail | |
Escorts | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 192 ci 3.1 L |
Bore/Stroke | 4.40x4.20 inches 112 x 107 mm |
Power | 49.7 hp 37.1 kW |
Air cleaner | dual dry element |
Compression | 16.3:1 |
Rated RPM | 2000 |
Idle RPM | 600-2400 |
Torque | 137 lb-ft 185.8 Nm |
Torque RPM | 1400 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 13.75 qts 13.0 L |
Intake valve clearance | 0.016 inches (cold) 0.406 mm |
Exhaust valve clearance | 0.019 inches (cold) 0.483 mm |

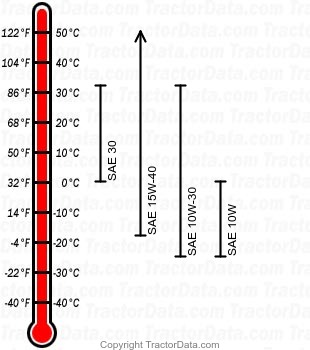

Engine Oil | |
Oil capacity | 6.34 qts 6.0 L |
