Hesston 160-90 Transmission


Hesston 160-90 tractor photo
1985 - 1991
Row-Crop tractor
Fiat built
Series map:
140-90
160-90
180-90
136.7hp*
156.7hp*
180.0hp*
*Estimated engine power for comparison only.
Transmission options
16-speed synchronized
24-speed creeper
16-speed partial power shift
Transmission
Typesynchronized
Gears16 forward and reverse
Four gears (1-4) in four ranges (I-IV).
Speeds
With 20.8-38 rear tires.

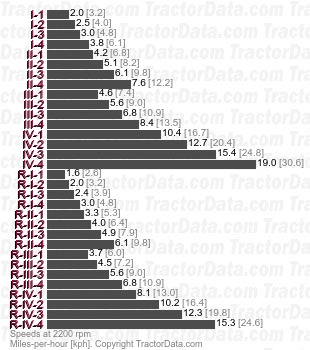

160-90  synchronized speeds
Transmission
Typecreeper
Gears24 forward and 8 reverse
Four gears (1-4) in three ranges (low/normal/high) with normal and creeper mode.
Speeds
With 20.8-38 rear tires.

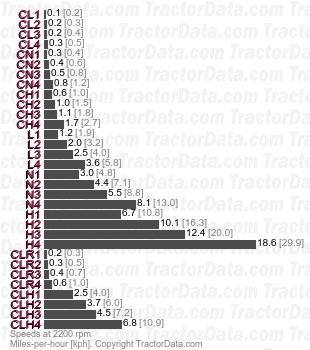

160-90  creeper speeds
Transmission
Typepartial power shift
Gears16 forward and reverse
Four power-shift gears (1-4) in four ranges (I-IV).
Speeds
With 20.8-38 rear tires.
160-90  partial power shift speeds
