Tractors > Hesston > 160-90

Hesston 160-90 Tests



Hesston 160-90 tractor photo
1985 - 1991
Row-Crop tractor
Fiat built
Series map:
140-90
160-90
180-90
136.7hp*
156.7hp*
180.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1534: diesel 16-speed synchro 4WD
NTTL 1603: diesel 16-speed powershift 4WD
Nebraska Tractor Test 1534

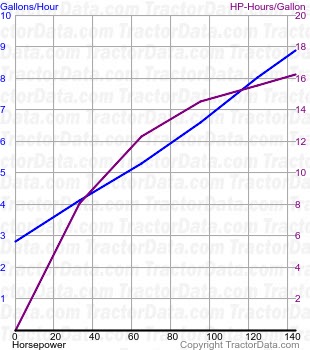

160-90 fuel use from test 1534
Nebraska Tractor Test 1534
Diesel 16-speed synchro 4WD
September 25 - October 8, 1984
Link: Nebraska Tractor Test 1534 file
PTO performance
Power at rated engine speed141.71 hp
105.7 kW
Fuel use8.4 gal/hour
31.8 l/hour
Power at rated PTO speed143.91 hp
107.3 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power120.08 hp
89.5 kW
Fuel use8.3 gal/hour
31.4 l/hour
Max pull13848 lbs
6281 kg
Nebraska Tractor Test 1603

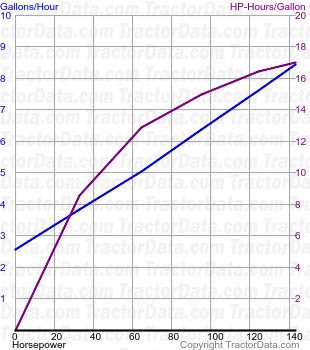

160-90 fuel use from test 1603
Nebraska Tractor Test 1603
Diesel 16-speed powershift 4WD
September 30 - October 7, 1986
Link: Nebraska Tractor Test 1603 file
PTO performance
Power at rated engine speed142.64 hp
106.4 kW
Fuel use8.9 gal/hour
33.7 l/hour
Power at rated PTO speed141.40 hp
105.4 kW
Fuel use8.5 gal/hour
32.2 l/hour
Drawbar performance
Max power122.39 hp
91.3 kW
Fuel use8.8 gal/hour
33.3 l/hour
Max pull18256 lbs
8280 kg
