| | 1990 - 1992 |
| 76 Series | | Orchard/Vineyard tractor |
|
Series map:
70-76
80-76
69.1hp
78.9hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed mechanical shuttle |
| 20-speed creeper shuttle |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range. |

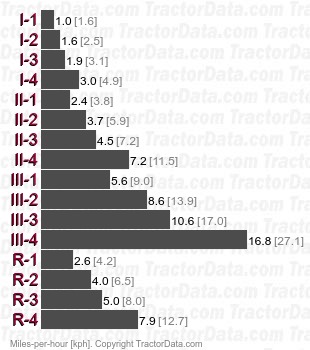

| Speeds |
| With 12.4-28 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | 279.4mm dry disc
|
| Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser. |

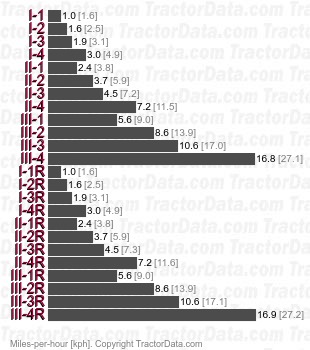

| Speeds |
| With 12.4-28 rear tires. |
|
| Transmission |
| Type | creeper shuttle
|
| Gears | 20 forward and 12 reverse
|
| Clutch | 254mm dry disc
|
| Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser and creeper. The shuttle-creeper lever is moved forward or back for direction control. Pushing the lever down and forward engages the creeper range. |

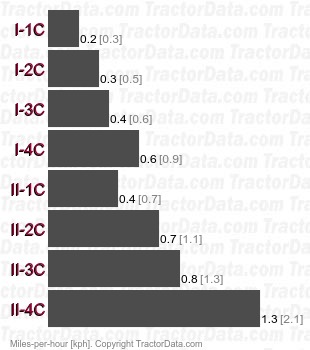

| Speeds |
| With 12.4-28 rear tires. |
|
