| | 1984 - 1988 |
| 90 Series | | Utility tractor | | Fiat built |
|
Series map:
60-90
70-90
60.0hp
70.0hp
| Transmission options |
| 12-speed synchromesh |
| 12-speed mechanical shuttle |
| 20-speed creeper |
| Transmission |
| Type | synchromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 279.4mm dry disc
|
| Four gears (1-4) in three ranges (I-III) plus reverse range. |

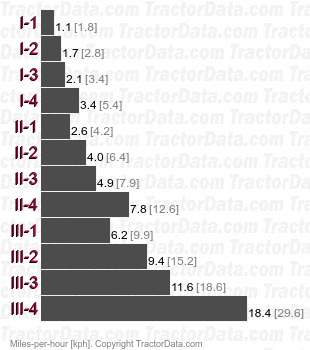

| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Four gears (1-4) in three ranges (I-III) with mechanical shuttle. |

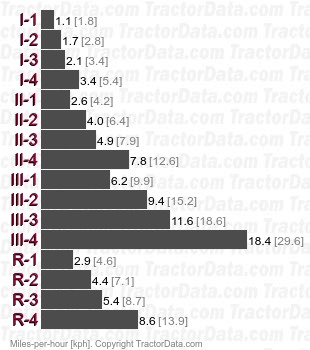

| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 20 forward and 8 reverse
|

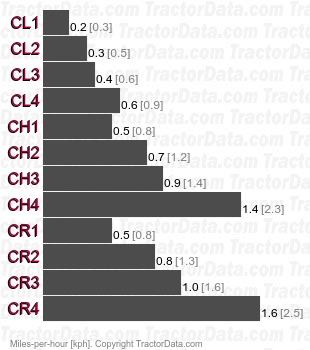

| Speeds |
| With 18.4-30 rear tires. |
|
