Fiat 60-76
|
|
| Production | |
| Manufacturer | Fiat |
| Orchard/Vineyard tractor | |
| Original price was $20,800 in 1990 | |
| Fiat 60-76 Engine | |
| Fiat 2.9L 3-cyl diesel | |
 Engine details ... |
| Fiat 60-76 Transmissions | |
| 12-speed partially synchronized | |
| 12-speed mechanical shuttle | |
| 20-speed creeper shuttle | |
 Transmission details ... |
| Fiat 60-76 Power | |
| Engine | 59.1 hp 44.1 kW |
| PTO (claimed) | 51 hp 38.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Trailer brakes | hydraulic OptOptional |
| Two-post mid-mount ROPS. | |
| Photos | |
| No photos of the Fiat 60-76 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2697 psi 186.0 bar |
| Pump flow | 8.7 gpm 32.9 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position and lower-link draft control |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| 540/1000 (1.375)OptOptional | |
| Engine RPM | 540@2200 |
| 1000@2380 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 74.3 inches 188 cm |
| 4WD Wheelbase | 78.6 inches 199 cm |
| Weight | 4564 to 5115 pounds |
| Front tire | 6.00-16 |
| 2WD Rear tire | 12.4-28 |
 Full dimensions and tires ... | |
| 60-76 Serial Numbers | |
| Location: | Serial number plate below the steering column. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Watts (rated) | 400 |
| Battery volts | 12 |
| Battery AH | 100 |
| References | |
 | |

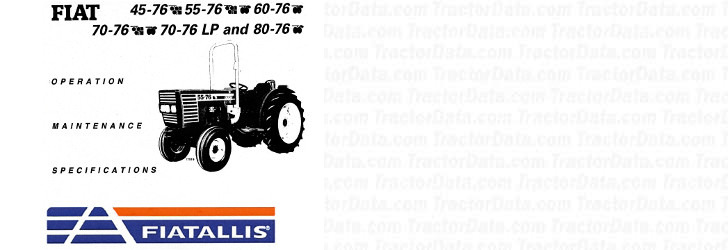

| Fiat 45-76 55-76 60-76 70-76 80-76 (603.64.205.00) published in 1991 |
