Hesston 680 Tests


Hesston 680 tractor photo
1981 - 1984
80 Series
Utility tractor
Series map:
580
680
780
55.6hp*
68.9hp*
77.8hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1352

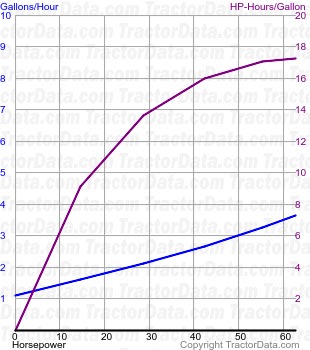

680 fuel use from test 1352
Nebraska Tractor Test 1352
Diesel 8-speed 4WD
May 30 - June 10, 1980
Link: Nebraska Tractor Test 1352 file
PTO performance
Power at rated engine speed62.47 hp
46.6 kW
Fuel use3.6 gal/hour
13.6 l/hour
Power at rated PTO speed61.20 hp
45.6 kW
Fuel use3.5 gal/hour
13.2 l/hour
Drawbar performance
Max power53.33 hp
39.8 kW
Fuel use3.6 gal/hour
13.6 l/hour
Gear 1H used for power test.
Max pull6,252 lbs
2835 kg
Gear 3L used for pull test.
