| | 1981 - 1984 |
| 80 Series | | Utility tractor |
|
Series map:
580
680
55.6hp*
68.9hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed partially synchronized |
| 16-speed |
| 8-speed mechanical shuttle |

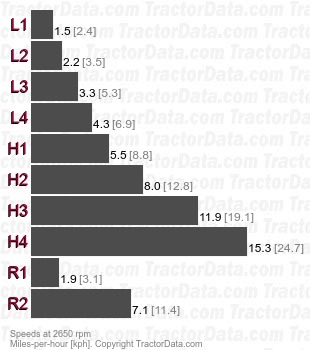

| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 2 reverse
|
| Four gears with high and low ranges provide eight forward speeds. Gears 3/4 are synchronized in both ranges. |
| Speeds |
| With 16.9-30 rear tires. |
|

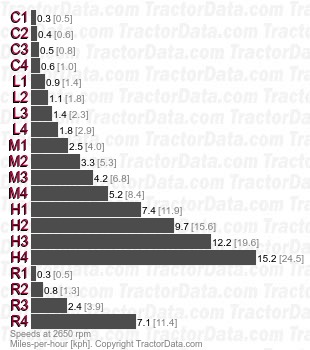

| Transmission |
| Gears | 16 forward and 4 reverse
|
| Four gears with four ranges provides sixteen forward speeds. |
| Speeds |
| With 16.9-30 rear tires. |
|

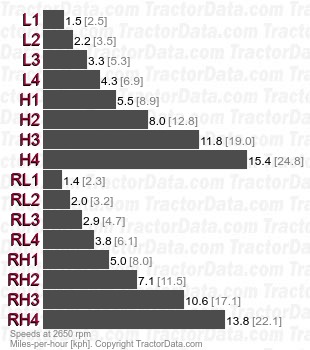

| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and reverse
|
| Speeds |
| With 16.9-30 rear tires. |
|
