John Deere 8410T
| | 2000 - 2001 |
| 8000 Ten Series | | Agricultural Crawler tractor |
|
Series map:
8310T
8410T
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Agricultural Crawler tractor |
| Built in Waterloo, Iowa, USA |
| Variants |
| 8410 | wheeled tractor
|
| 8410T | crawler tractor
|
| John Deere 8410T Power |
| PTO (claimed) | 235 hp
175.2 kW
|
| Drawbar (tested) | 205.84 hp
153.5 kW
|
| PTO (tested) | 270.62 hp
201.8 kW
|
 Performance test details ... |
| Mechanical |
| Drive | crawler
|
| Steering | hydrostatic
|
| Hydraulic wet disc brakes |
| CommandView cab standard with heat and A/C. Optional dexlue cab with rear windshield wiper, additional lights, mirror, and sun visor. |
| Capacity |
| Fuel | 130 gal
492.1 L
|
| Hydraulic system | 65 gal
246.0 L
|
| Hydraulics |
| Type | pressure/flow compensated (PFC)
|
| Capacity | 65 gal
246.0 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 3 to 5
|
| Pump flow | 30 gpm
113.6 lpm
|
| Total flow | 33.5 gpm
126.8 lpm
|
| | 42.5 gpm (optional)
160.9 lpm
|
| Tractor hitch |
| Rear Type | III/IIIN
|
| Rear lift | 15,650 lbs
7098 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 140
|
| Batteries | 2
|
| Battery CCA | 1850
|
| Battery volts | 12
|
| References |
 |
| 8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 28, 2022 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

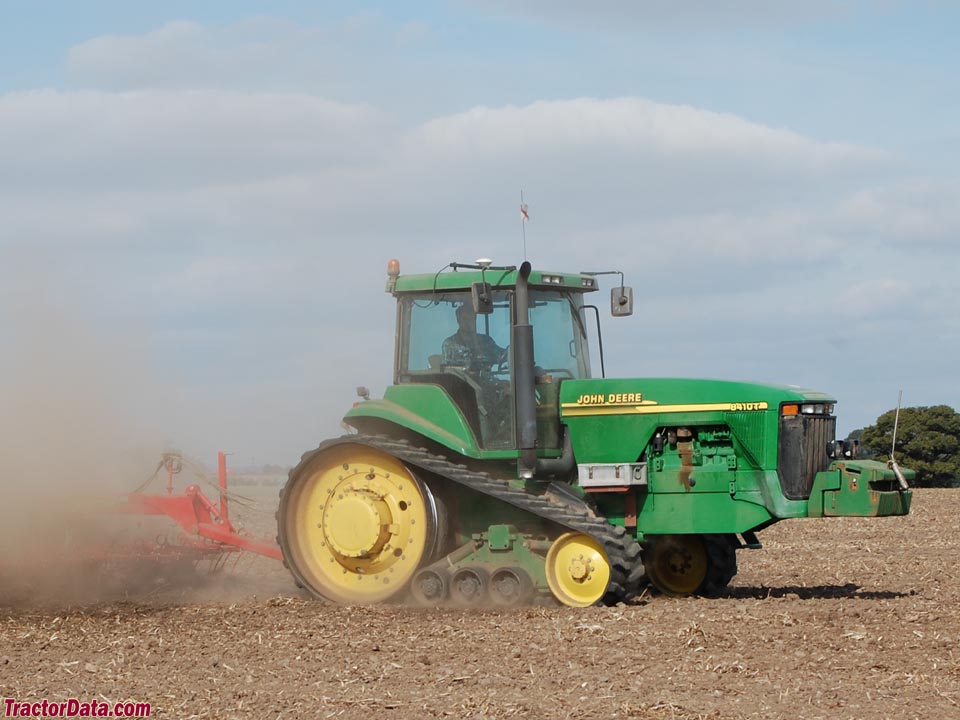

John Deere 8410T photos...
