Tractors > CaseIH > Steiger 430

CaseIH Steiger 430 Tests



CaseIH Steiger 430 tractor photo
2007 - 2008
Four-wheel Drive (4WD) tractor
Series map:
Steiger 380
Steiger 430
Steiger 480
380.0hp
430.0hp
480.0hp
OCED Tractor Test 1909

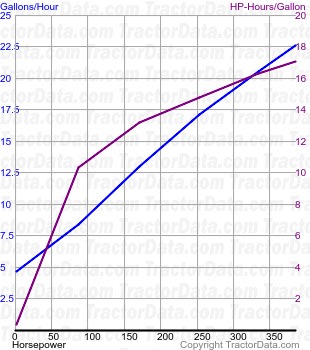

Steiger 430 fuel use from test 557
OCED Tractor Test 1909
Diesel 16-speed 4WD
September 25 - October 12, 2007
Link: OCED Tractor Test 1909 file
PTO performance
Max power438.97 hp
327.3 kW
Fuel use24.5 gal/hour
92.7 l/hour
Power at rated engine speed384.59 hp
286.8 kW
Fuel use22.5 gal/hour
85.2 l/hour
Drawbar performance
Max power351.28 hp
261.9 kW
Fuel use22.1 gal/hour
83.6 l/hour
Gear 6 used for power test.
Max pull36669 lbs
16633 kg
Gear 2 used for pull test.
