Tractors > CaseIH > Steiger 380

CaseIH Steiger 380 Tests



CaseIH Steiger 380 tractor photo
2007 - 2008
Four-wheel Drive (4WD) tractor
Series map:
Steiger 330
Steiger 380
Steiger 430
330.0hp
380.0hp
430.0hp
OCED Tractor Test 1908

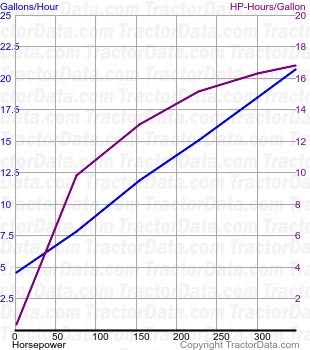

Steiger 380 fuel use from test 576
OCED Tractor Test 1908
Diesel 16-speed 4WD
October 16 - 23, 2007
Link: OCED Tractor Test 1908 file
PTO performance
Max power390.87 hp
291.5 kW
Fuel use22.6 gal/hour
85.5 l/hour
Power at rated engine speed347.00 hp
258.8 kW
Fuel use20.7 gal/hour
78.3 l/hour
Drawbar performance
Max power319.41 hp
238.2 kW
Fuel use20.5 gal/hour
77.6 l/hour
Gear 4 used for power test.
Max pull41365 lbs
18763 kg
Gear 2 used for pull test.
