J.I. Case 4494 Transmission


J.I. Case 4494 tractor photo
1984
4WD 94 Series
Four-wheel Drive (4WD) tractor
Series map:
4494
4694
213.0hp
261.0hp
Transmission
Transmissionpartial power shift
Gears12 forward and 4 reverse
Clutchhydraulic wet disc
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.

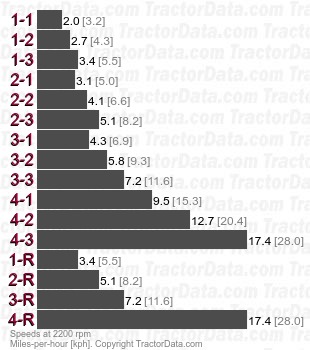

Speeds
With 23.1x30 tires.
4494 partial power shift  speeds
