Tractors > CaseIH > Magnum 210

CaseIH Magnum 210 Tests



CaseIH Magnum 210 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 190
Magnum 210
Magnum 225
190.0hp
210.0hp
225.0hp
OCED Tractor Test 2427

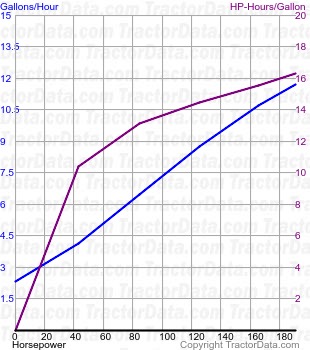

Magnum 210 fuel use from test 623A
OCED Tractor Test 2427
Diesel 19-speed 4WD
May 2007 - July 2007,
Link: OCED Tractor Test 2427 file
PTO performance
Max power203.0 hp
151.4 kW
Fuel use11.8 gal/hour
44.7 l/hour
Power at rated engine speed190.4 hp
142.0 kW
Fuel use11.7 gal/hour
44.3 l/hour
Power at rated PTO speed198.5 hp
148.0 kW
Fuel use11.8 gal/hour
44.7 l/hour
Drawbar performance
Max power155.8 hp
116.2 kW
Fuel use11.8 gal/hour
44.7 l/hour
Gear 10 used for power test.
Max pull15,630 lbs
7089 kg
Gear 6 used for pull test.
