Tractors > CaseIH > Magnum 190

CaseIH Magnum 190 Tests



CaseIH Magnum 190 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
Magnum 210
180.0hp
190.0hp
210.0hp
OCED Tractor Test 2425

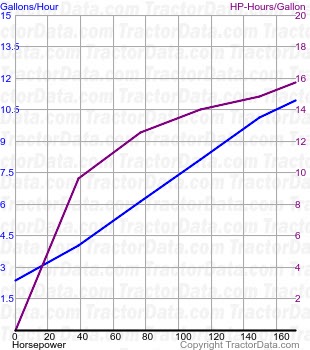

Magnum 190 fuel use from test 622A
OCED Tractor Test 2425
Diesel 19-speed 4WD
May 2007 - June 2007,
Link: OCED Tractor Test 2425 file
PTO performance
Max power189.4 hp
141.2 kW
Fuel use10.9 gal/hour
41.3 l/hour
Power at rated engine speed171.2 hp
127.7 kW
Fuel use10.9 gal/hour
41.3 l/hour
Power at rated PTO speed178.4 hp
133.0 kW
Fuel use11.0 gal/hour
41.6 l/hour
