Tractors > CaseIH > Magnum 190

CaseIH Magnum 190 Engine



CaseIH Magnum 190 tractor photo
2009 - 2013
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
Magnum 210
180.0hp
190.0hp
210.0hp
Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.094x5.197 inches
104 x 132 mm
EmissionsTier 3
Power190 hp
141.7 kW
Maximum Power250 hp
186.4 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Rated RPM2200
Starterelectric
Starter volts12
Oil capacity17 qts
16.1 L

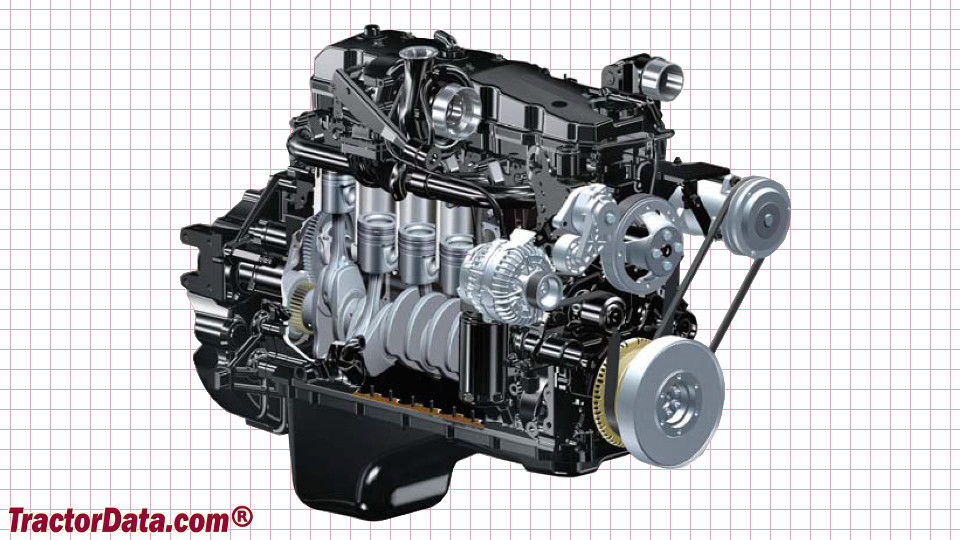

CaseIH Magnum 190 Engine
CaseIH Magnum 190 engine image
