Tractors > CaseIH > Magnum 180

CaseIH Magnum 180 Tests



CaseIH Magnum 180 tractor photo
2009 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
180.0hp
190.0hp
OCED Tractor Test 2423

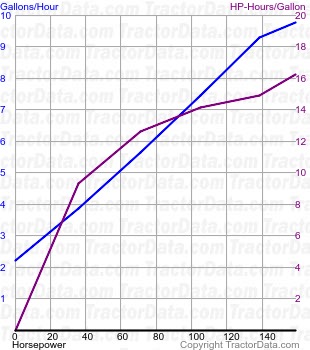

Magnum 180 fuel use from test 621A
OCED Tractor Test 2423
Diesel 19-speed 4WD
June 2007 - September 2007,
Link: OCED Tractor Test 2423 file
PTO performance
Max power179.8 hp
134.1 kW
Fuel use10.0 gal/hour
37.9 l/hour
Power at rated engine speed158.6 hp
118.3 kW
Fuel use9.8 gal/hour
37.1 l/hour
Power at rated PTO speed164.4 hp
122.6 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power132.7 hp
99.0 kW
Fuel use9.9 gal/hour
37.5 l/hour
Gear 8 used for power test.
Max pull16,805 lbs
7622 kg
Gear 6 used for pull test.
