Tractors > CaseIH > Magnum 180

CaseIH Magnum 180 Engine



CaseIH Magnum 180 tractor photo
2009 - 2025
Model year
Magnum Series
Row-Crop tractor
Series map:
Magnum 180
Magnum 190
180.0hp
190.0hp
Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.094x5.197 inches
104 x 132 mm
EmissionsTier 3
Power180 hp
134.2 kW
Maximum Power234 hp
174.5 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Compression16.5:1
Rated RPM2200
Starterelectric
Starter volts12
Oil capacity17 qts
16.1 L

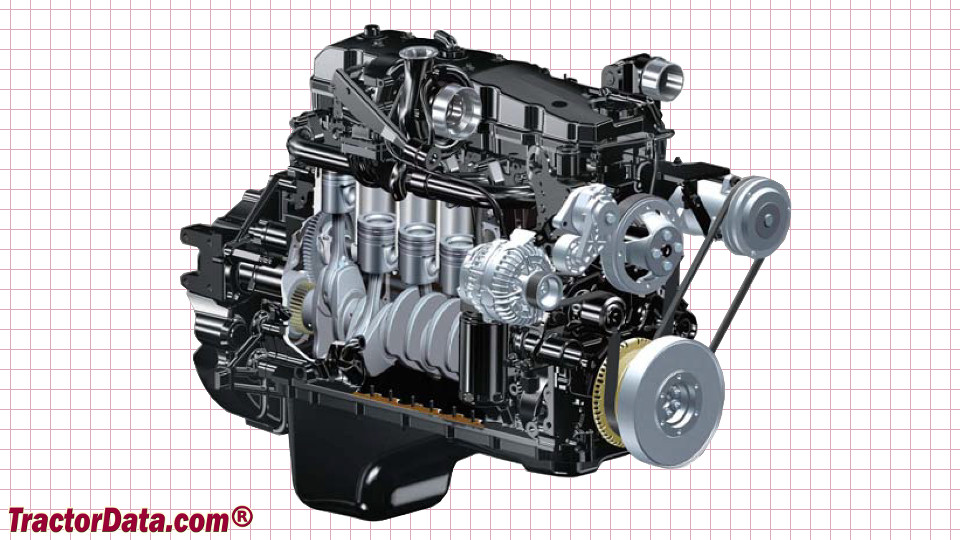

CaseIH Magnum 180 Engine
CaseIH Magnum 180 engine image
