Ford 7740 Tests


Ford 7740 tractor photo
1991 - 1995
PowerStar 40 Series
Row-Crop tractor
Series map:
6640
7740
7840
90.7hp
100.3hp
100.0hp*
*Estimated engine power for comparison only.
Tractor Tests
OECD 1658: diesel 16x4 4WD
OECD 1705: diesel 16x16 4WD
OCED Tractor Test 1658

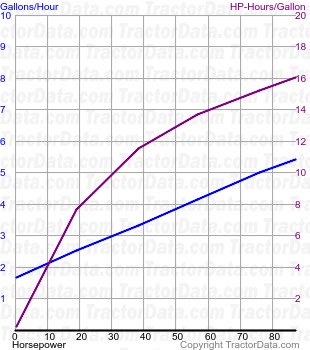

7740 fuel use from test 107
OCED Tractor Test 1658
Diesel 16x4 4WD
May 6 - 13, 1992
Link: OCED Tractor Test 1658 file
PTO performance
Power at rated engine speed86.86 hp
64.8 kW
Fuel use5.2 gal/hour
19.7 l/hour
Power at rated PTO speed87.24 hp
65.1 kW
Fuel use5.1 gal/hour
19.3 l/hour
Drawbar performance
Max power76.93 hp
57.4 kW
Fuel use5.2 gal/hour
19.7 l/hour
Gear 5-Low used for power test.
Max pull11,352 lbs
5149 kg
Gear 2H used for pull test.
OCED Tractor Test 1705

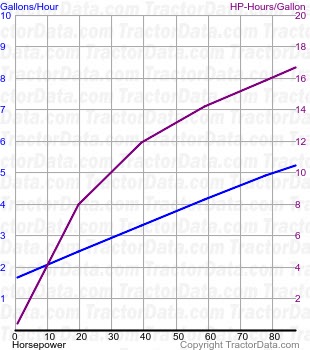

7740 fuel use from test 193
OCED Tractor Test 1705
Diesel 16x16 4WD
October 9 - 23, 1995
Link: OCED Tractor Test 1705 file
PTO performance
Power at rated engine speed86.96 hp
64.8 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed86.41 hp
64.4 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power74.15 hp
55.3 kW
Fuel use5.4 gal/hour
20.4 l/hour
Gear 6-Low used for power test.
Max pull10,210 lbs
4631 kg
Gear 4L used for pull test.
