Ford 7740 Engine



Ford 7740 tractor photo
1991 - 1995
PowerStar 40 Series
Row-Crop tractor
Series map:
6640
7740
7840
90.7hp
100.3hp
100.0hp*
*Estimated engine power for comparison only.
Engine Detail
Ford Genesis
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
The 7740 used a Lucas CAV DP200 fuel pump.
Displacement304 ci
5.0 L
Bore/Stroke4.40x5.00 inches
112 x 127 mm
Power (net)95 hp
70.8 kW
Power (gross)100.3 hp
74.8 kW
Air cleanerdual paper elements
Compression17.5:1
Rated RPM2100
Idle RPM725-2275
Torque413 lb-ft
560.0 Nm
Torque RPM1200
Firing order1-3-4-2
Starter volts12
ROPS Coolant capacity15.3 qts
14.5 L
Cab Coolant capacity16.9 qts
16.0 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.019 inches (cold)
0.483 mm

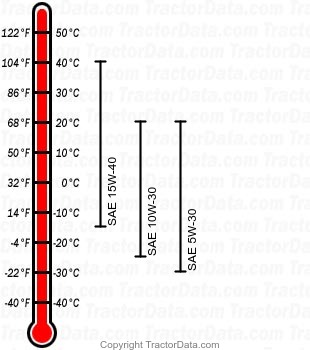

Engine Oil
7740 diesel engine oil chart
Oil capacity12.1 qts
11.5 L
