Ford 6610
| | 1982 - 1993 |
| 10 Series | | Utility tractor |
|
Series map:
5610
6610
6710
68.5hp
78.5hp
78.5hp
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Original price was $24,500 in 1993 |
| Ford 6610 tractors in the South African market were equipped with an ADE 236T diesel engine. |
| Ford 6610 Power |
| Engine (gross) | 82 hp
61.1 kW
|
| Engine | 78.5 hp
58.5 kW
|
| PTO (claimed) | 72 hp
53.7 kW
|
| Drawbar (tested) | 61.37 hp
45.8 kW
|
| PTO (tested) | 72.30 hp
53.9 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Differential mechanical wet disc brakes |
| Two-post ROPS. Cab optional with air-conditioning. |
| Capacity |
| Fuel | 21 gal
79.5 L
|
| Hydraulic system | 15 gal
56.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 15 gal
56.8 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 1
|
| Pump flow | 9.7 gpm (Series I)
36.7 lpm
|
| | 18.2 gpm (Series II)
68.9 lpm
|
| Steering flow | 3.6 gpm
13.6 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift (at 24"/610mm) | 4137 lbs
1876 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| | 540/1000 OptOptional
|
| 6610 Serial Numbers |
| Location: | On plate inside engine compartment and on right-front of transmission.
|
| 1982 | C682000
|
| 1983 | C694500
|
| 1984 | C707400
|
| 1985 | C732600
|
| 1986 | C750422
|
| 1987 | C763228
|
| 1988 | BB31777
|
| 1989 | BB80620
|
| 1990 | BC26239
|
| 1991 | BC77283
|
| 1992 | BD05700
|
| 1993 | BD37000
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 32 (Series I)
|
| | 51 (Series II ROPS)
|
| | 75 (Series II Cab)
|
| Battery volts | 12
|
| Battery AH | 128
|

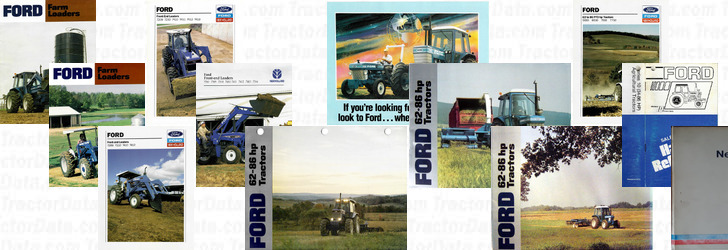

| References |
 |
| Farm Loaders published in 1982, by Ford |
| Farm Loaders published in 1988, by Ford |
| Front-end Loaders published in 1989, by Ford |
| Front-end Loaders published in 1992, by Ford |
| Front-end Loaders published in 1995, by New Holland |
| 62-86 hp Tractors published in 1986, by Ford |
| If you're looking for tractor quality, look to Ford published in 1982 |
| 62-86hp Tractors published in 1982, by Ford |
| 62-86hp Tractors published in 1984, by Ford |
| 62 to 86 PTO hp Tractors published in 1989, by Ford |
| Salesman's Reference published in 1981, by Ford |
| 10 Series Tractors Repair Manual (SE 3870) published in 1989 |
| Tobacco Specials published in 1982, by Ford |
| Tractor Buyer's Guide published in 1989, by Ford |
| Sales Reference Guide published in 1986, by Ford |
