Ford 5640 Engine
|
|
| Engine Detail | |
| Ford Genesis | |
| diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement | 268 ci 4.4 L |
| Bore/Stroke | 4.40x4.40 inches 112 x 112 mm |
| Power (net) | 75 hp 55.9 kW |
| Power (gross) | 78.7 hp 58.7 kW |
| Air cleaner | dual paper elements |
| Compression | 17.5:1 |
| Rated RPM | 2200 |
| Idle RPM | 725-2375 |
| Torque | 289 lb-ft 391.9 Nm |
| Torque RPM | 1400 |
| Firing order | 1-3-4-2 |
| Starter volts | 12 |
| ROPS Coolant capacity | 15.3 qts 14.5 L |
| Cab Coolant capacity | 16.9 qts 16.0 L |
| Intake valve clearance | 0.016 inches*Cold 0.406 mm |
| Exhaust valve clearance | 0.019 inches*Cold 0.483 mm |

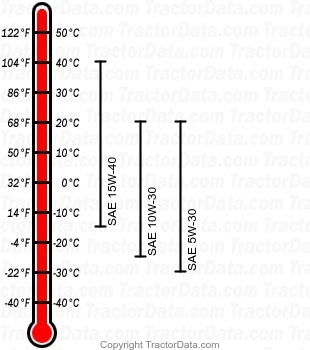

| Engine Oil | |
| |
| Oil capacity | 12.1 qts 11.5 L |
