| | 1982 - 1993 |
| 10 Series | | Utility tractor |
|
Series map:
5610
6610
68.5hp
78.5hp
| Transmission options |
| 8-speed |
| 8-speed synchromesh |
| 16-speed partial power shift |
| 16-speed synchromesh partial power shift |
| Transmission |
| Transmission | Dual-range
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 305mm dry disc
|

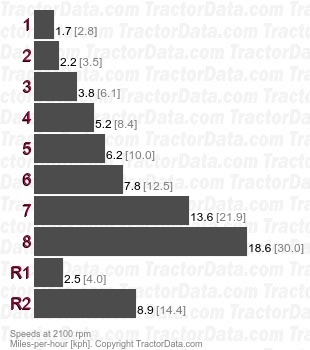

| Speeds |
| With 18.4x34 rear tires. |
|
| Transmission |
| Transmission | Dual-range
|
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Speeds |
| With 18.4x34 rear tires. |
|
| Transmission |
| Transmission | Dual Power
|
| Type | partial power shift
|
| Gears | 16 forward and 4 reverse
|
| The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission. |

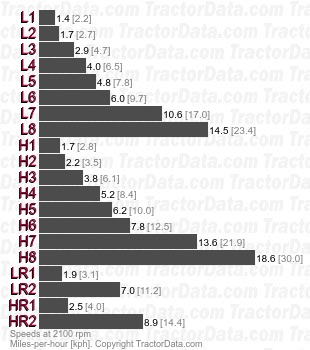

| Speeds |
| With 18.4x34 rear tires. |
|
| Transmission |
| Transmission | Dual Power
|
| Type | synchromesh partial power shift
|
| Gears | 16 forward and 8 reverse
|
| A shift-on-the-move under-speed added to the 8/4 synchromesh transmission. |

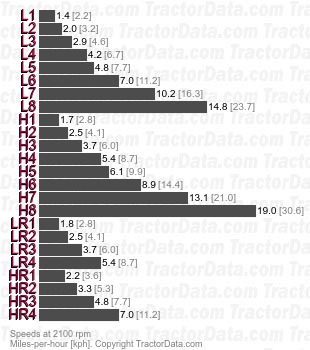

| Speeds |
| With 18.4x34 rear tires. |
|
