Ford 5610 Tests


Ford 5610 tractor photo
1982 - 1993
10 Series
Utility tractor
Series map:
5610
6610
68.5hp
78.5hp
Tractor Tests
NTTL 1428: diesel 16x4 4WD
NTTL 1429: diesel 16x8 2WD
Nebraska Tractor Test 1428

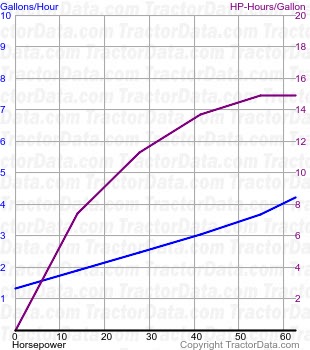

5610 fuel use from test 1428
Nebraska Tractor Test 1428
Diesel 16x4 4WD
March 25 - April 19, 1982
Link: Nebraska Tractor Test 1428 file
PTO performance
Power at rated engine speed62.54 hp
46.6 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed60.58 hp
45.2 kW
Fuel use3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power53.43 hp
39.8 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 6L used for power test.
Max pull7,408 lbs
3360 kg
Gear 3L used for pull test.
Nebraska Tractor Test 1429

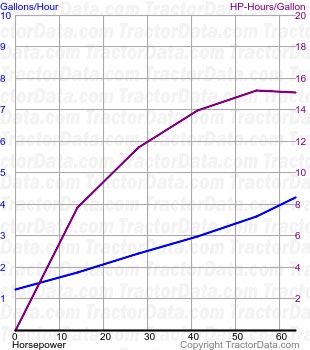

5610 fuel use from test 1429
Nebraska Tractor Test 1429
Diesel 16x8 2WD
April 5 - May 6, 1982
Link: Nebraska Tractor Test 1429 file
PTO performance
Power at rated engine speed62.57 hp
46.7 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed59.99 hp
44.7 kW
Fuel use3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power52.98 hp
39.5 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 6L used for power test.
Max pull7,578 lbs
3437 kg
Gear 2H used for pull test.
