| | 1990 - 1993 |
| 30 Utility Series | | Utility tractor |
|
Series map:
3930
4630
4830
50.0hp*
60.0hp
65.0hp
| Transmission options |
| 8-speed gear |
| 8-speed synchronized shuttle |
| 16-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|

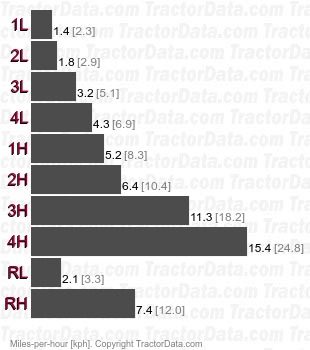

| Speeds |
|
| Transmission |
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Transmission |
| Transmission | Dual-Power
|
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | dry disc
|
| Dual-Power provides a push-button power shift between direct drive and a lower range. |
