| | 1981 - 1989 |
| 10 Utility Series | | Utility tractor |
|
Series map:
3910
4610
47.5hp
60.0hp
| Transmission options |
| 8-speed |
| 8-speed synchromesh |
| Transmission |
| Transmission | Dual Range
|
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 12.7 qts
12.0 L
|

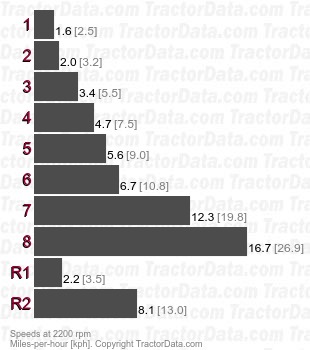

| Speeds |
| With 16.9x30 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Oil capacity | 9.9 qts
9.4 L
|

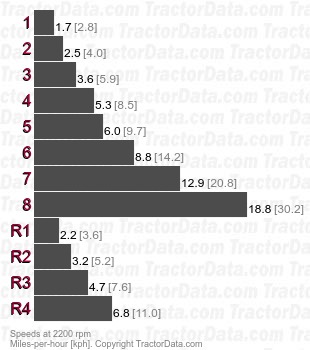

| Speeds |
| With 16.9x30 rear tires. |
|
