Ford 3910
| | 1983 - 1989 |
| 10 Utility Series | | Utility tractor |
|
Series map:
2910
3910
4610
40.5hp
47.5hp
60.0hp
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Original price was $16,200 in 1989 |
| Ford 3910 Power |
| Engine (gross) | 50 hp
37.3 kW
|
| Engine | 47.5 hp
35.4 kW
|
| PTO (claimed) | 42 hp
31.3 kW
|
| Drawbar (tested) | 35.62 hp
26.6 kW
|
| PTO (tested) | 42.67 hp
31.8 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | mechanical rear
|
| Steering | power assist
|
| Differential wet disc brakes |
| Two-post fixed ROPS. Cab optional. |
| Capacity |
| Fuel | 13 gal
49.2 L
|
| Hydraulic system | 12.1 gal
45.8 L
|
| Steering | 3.6 qts
3.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 12.1 gal
45.8 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 1
|
| Pump flow | 7.7 gpm
29.1 lpm
|
| | 12.8 gpmOptOptional
48.4 lpm
|
| Steering cap. | 3.6 qts
3.4 L
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and top-link draft control
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| 3910 Serial Numbers |
| Location: | Transmission cover, right-front.
|
| 1982 | C681910
|
| 1983 | C695880
|
| 1984 | C713459
|
| 1985 | C737800
|
| 1986 | C754100
|
| 1987 | C768000
|
| 1986 | BA74292
|
| 1987 | BB05681
|
| 1988 | BB31777
|
| 1989 | BB84620
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Mk I Charging amps | 32
|
| Mk II Charging amps | 51
|
| Battery volts | 12
|
| Battery AH | 128
|
| References |
 |
| Farm Loaders published in 1988, by Ford |
| Front-end Loaders published in 1989, by Ford |
| Front-end Loaders published in 1992, by Ford |
| Front-end Loaders published in 1995, by New Holland |
| 32-52 hp Tractors published in 1985, by Ford |
| 32-52 hp Tractors published in 1986, by Ford |
| 32-52 hp Tractors published in 1987, by Ford |
| 2910 - 3910 published in 1983, by Ford |
| Generation III Traktorer Modell 3910 och 4610 published in 1990, by Ford |
| Tractor Buyer's Guide published in 1989, by Ford |
| Sales Reference Guide published in 1986, by Ford |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

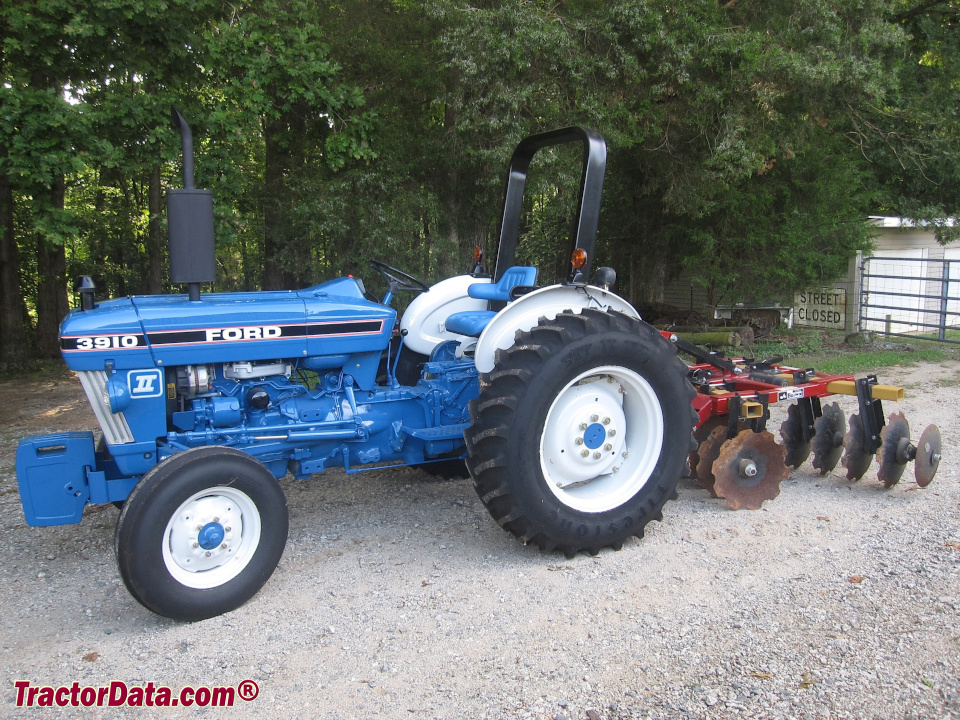

Ford 3910 photos...
