Ford 1920

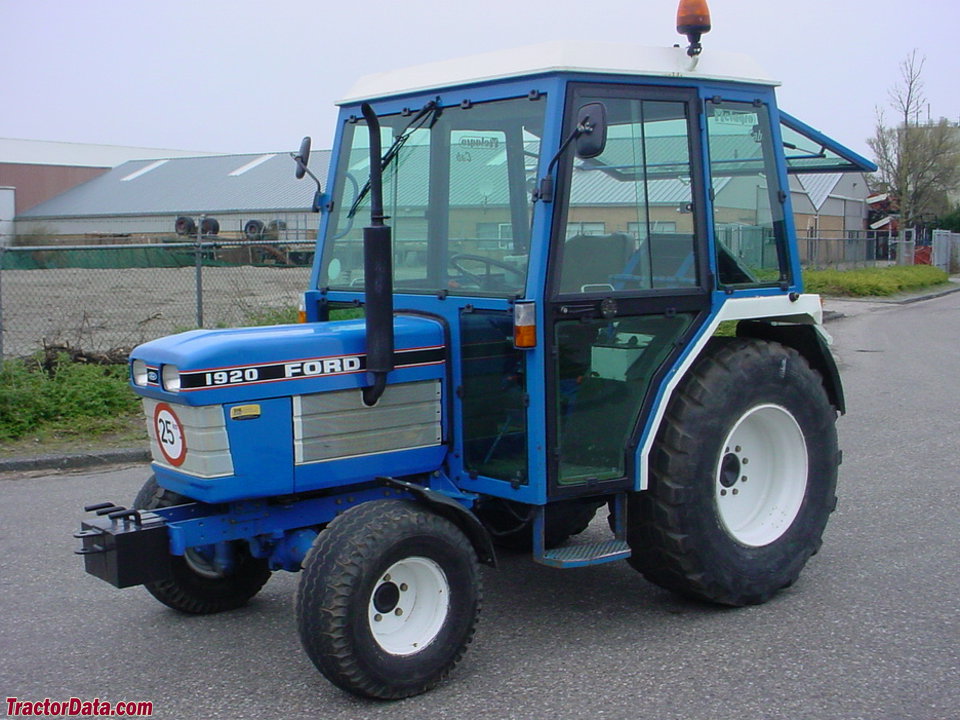

Ford 1920 tractor photo
1987 - 1995
Twenty Compact Series
Compact Utility tractor
Shibaura built
Series map:
1720
1920
2120
27.7hp
33.3hp
42.6hp
Production
DistributorFord
ManufacturerShibaura
Compact Utility tractor
Built in Japan
Original price was $15,500 in 2000
Ford 1920 Engine
Shibaura 2.0L 4-cyl diesel
Engine details ...
Ford 1920 Transmissions
12-speed gear
12-speed mechanical shuttle
Transmission details ...
Ford 1920 Power
Engine (gross)33.3 hp
24.8 kW
Engine (net)32 hp
23.9 kW
PTO (claimed)28.5 hp
21.3 kW
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.
Photos
Ford 1920
Ford 1920 photos...
Capacity
Fuel9.8 gal
37.1 L
Hydraulic system7.7 gal
29.1 L
Hydraulics
Typeopen center
Capacity7.7 gal
29.1 L
Pump flow7.8 gpm
29.5 lpm
Total flow10.6 gpm
40.1 lpm
Steering flow2.8 gpm
10.6 lpm
Tractor hitch
Rear TypeI
Controldraft control OptOptional
Rear lift (at 24"/610mm)1881 lbs
853 kg
Power Take-off (PTO)
Rear PTOtransmission
 live OptOptional
Rear PTO Type540
Dimensions & Tires
Wheelbase69.9 inches
177 cm
Weight2849 to 3069 pounds
Front tire5.50-16
2WD Rear tire13.6-24
Full dimensions and tires ...
Ford 1920 attachments
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
1920 Serial Numbers
Location:transmission, left side
1987UP21001
1988UP21710
1989UP24896
1990UP27299
1991UP29354
1992UP30817
1993UP32448
1994UP34038
1995UP35988
1996UP37672
1997UP39076
1998UP41105
1999UP43277
2000UP45272

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
1920 references literature
Ford Shop Manual by Peter Letourneau
12.5 to 34.5 PTO hp Compact Diesels published in 1987, by Ford
12.5 to 34.5 PTO hp Compact Diesel Tractors published in 1988, by Ford
12.5 to 34.5 PTO hp Compact Diesel Tractors published in 1993, by Ford
Compact Diesel Tractors published in 1994, by Ford
Compact Diesel Tractors published in 1995, by Ford
Tractor Buyer's Guide published in 1989, by Ford
