Ford 1910 Tests


Ford 1910 tractor photo
1983 - 1986
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1710
1910
2110
26.0hp
32.0hp
38.0hp
Tractor Tests
NTTL 1507: diesel 12/4 gear 2WD
NTTL 1508: diesel 12/4 synchro 2WD
Nebraska Tractor Test 1507

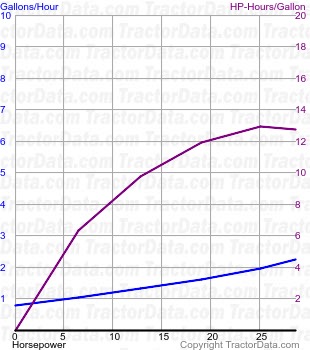

1910 fuel use from test 1507
Nebraska Tractor Test 1507
Diesel 12/4 gear 2WD
March 30 - April 12, 1984
Link: Nebraska Tractor Test 1507 file
PTO performance
Power at rated engine speed28.60 hp
21.3 kW
Fuel use2.2 gal/hour
8.3 l/hour
Power at rated PTO speed28.29 hp
21.1 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power24.76 hp
18.5 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 3-3 used for power test.
Max pull3,340 lbs
1515 kg
Gear 2-3 used for pull test.
Nebraska Tractor Test 1508

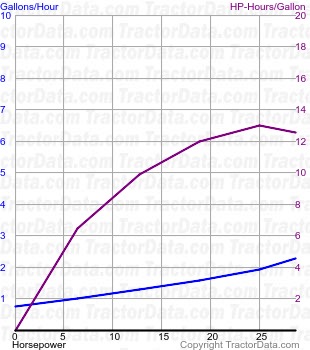

1910 fuel use from test 1508
Nebraska Tractor Test 1508
Diesel 12/4 synchro 2WD
March 30 - April 17, 1984
Link: Nebraska Tractor Test 1508 file
PTO performance
Power at rated engine speed28.52 hp
21.3 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed28.30 hp
21.1 kW
Fuel use2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power24.57 hp
18.3 kW
Fuel use2.2 gal/hour
8.3 l/hour
Gear 3-3 used for power test.
Max pull2,566 lbs
1163 kg
Gear 2-3 used for pull test.
