John Deere 8320RT
| | 2009 - 2010 |
| Agricultural Crawler tractor |
|
| Production |
| Manufacturer | John Deere
|
| Agricultural Crawler tractor |
| Built in Waterloo, Iowa, USA |
| Variants |
| 8320R | wheeled tractor
|
| John Deere 8320RT Power |
| Engine (gross) | 320 hp
238.6 kW
|
| Engine (net) | 307 hp
228.9 kW
|
| Engine (max) | 347 hp
258.8 kW
|
| PTO (claimed) | 260 hp
193.9 kW
|
| Drawbar (tested) | 225.14 hp
167.9 kW
|
| PTO (tested) | 297.43 hp
221.8 kW
|
 Performance test details ... |
| Mechanical |
| Drive | crawler
|
| Steering | electro-hydraulic power
|
| Hydraulic wet disc brakes |
| CommandView cab standard with heat and air-conditioning. Optional automatic temperature control, mirros, and front/rear windshield wipers. |
| Capacity |
| Fuel | 200 gal
757.0 L
|
| Hydraulic system | 68.3 gal
258.5 L
|
| Hydraulics |
| Type | closed center pressure-flow compensated
|
| Capacity | 68.3 gal
258.5 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 3 to 5
|
| Pump flow | 35 gpm
132.5 lpm
|
| Total flow | 44 gpm
166.5 lpm
|
| | 60 gpm (optional)
227.1 lpm
|
| Tractor hitch |
| Rear Type | IVN/III
|
| Rear lift (at 24"/610mm) | 19,300 lbs
8754 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1-3/4)
|
| 8320RT Serial Numbers |
| Location: | Right side of tractor.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| Batteries | 2
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| 8R/8RT Series published in 2009, by John Deere |
| 8R/8RT Series - Top 10 Feature & Benefits, plus Tractor Optimization Tips published in 2009, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on August 27, 2022 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

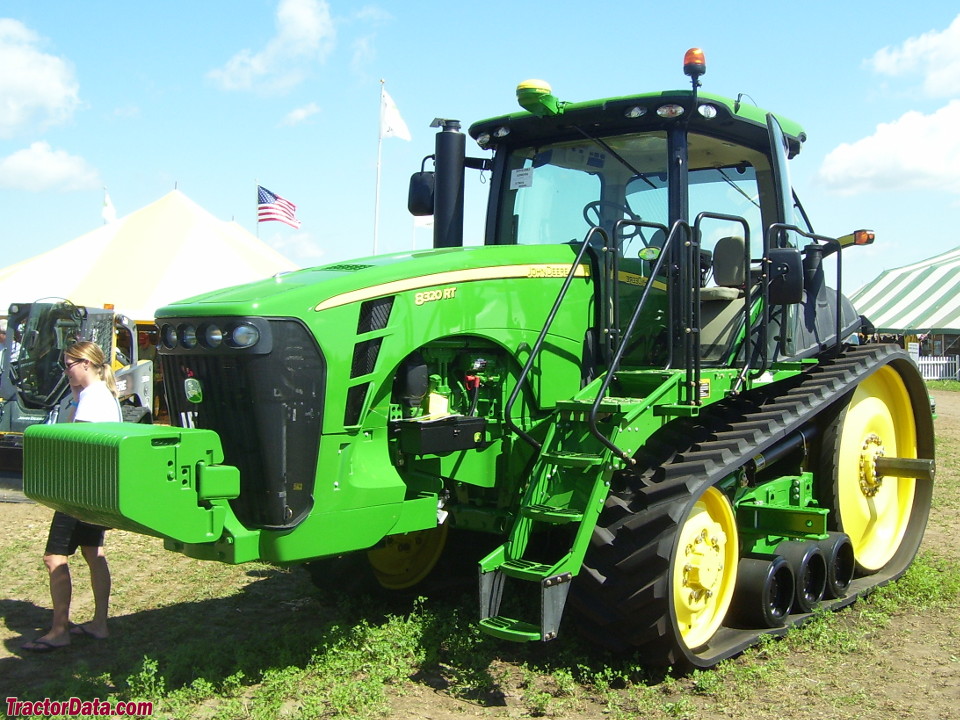

John Deere 8320RT photos...
