John Deere 8295RT Engine


John Deere 8295RT tractor photo
2009 - 2010
Agricultural Crawler tractor
Series map:
8295RT
8320RT
295.0hp
320.0hp
Engine Detail
John Deere
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement548 ci
9.0 L
Bore/Stroke4.661x5.354 inches
118 x 136 mm
EmissionsTier 3
 Stage IIIA
Rated Power (net)284 hp
211.8 kW
Rated Power (gross)295 hp
220.0 kW
Maximum Power (gross)322 hp
240.1 kW
Air cleanerdual paper elements
Compression16.3:1
Rated RPM2100
Operating RPM1500-2100
Starterelectric
Starter volts12
Coolant capacity42.3 qts
40.0 L
Engine Oil

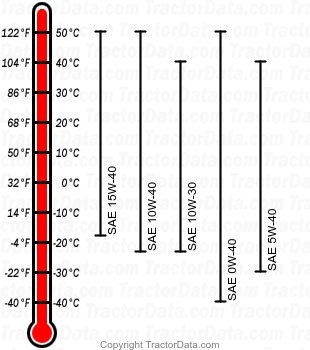

8295RT diesel engine oil chart
Oil capacity27 qts
25.6 L
Oil change250 h
 375 h (JD Plus-50 II oil)
