Tractors > John Deere > 8320R

John Deere 8320R Transmission



John Deere 8320R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
Series map:
8295R
8320R
8345R
295.0hp
320.0hp
345.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
Speeds
With 480/80R50 rear tires. R3 speed at 2300 RPM and R4 speed at 1500 RPM.

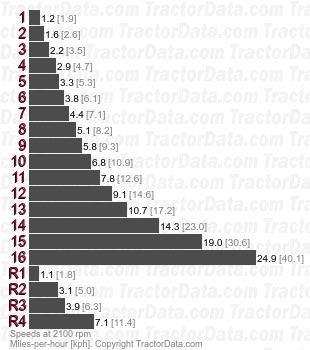

8320R PowerShift full power shift speeds
Shift Pattern

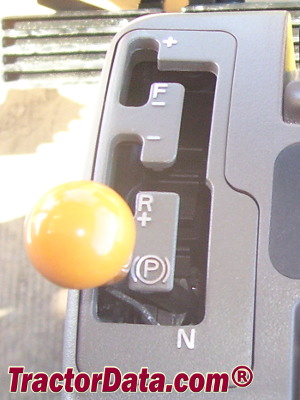

John Deere 8320R transmission controls
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
The IVT is available with either a 40 km/h or 50 km/h maximum speed.
Speeds
With 480/80R50 rear tires.

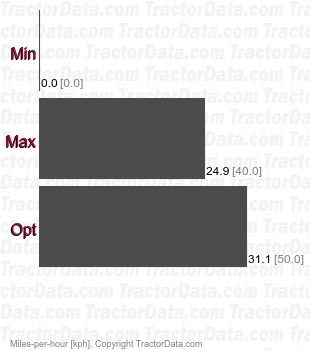

8320R Infinitely Variable Transmission (IVT) speeds
