Tractors > John Deere > 8295R

John Deere 8295R Engine



John Deere 8295R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
Series map:
8270R
8295R
8320R
270.0hp
295.0hp
320.0hp
Engine Detail
John Deere
variable geometry turbocharger diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement548 ci
9.0 L
Bore/Stroke4.661x5.354 inches
118 x 136 mm
EmissionsTier 3
 Stage IIIA
Rated Power (net)284 hp
211.8 kW
Rated Power (gross)295 hp
220.0 kW
Air cleanerdual paper elements
Compression16.3:1
Rated RPM2100
Operating RPM1500-2100
Starter volts12
Coolant capacity42.3 qts
40.0 L
Engine Oil

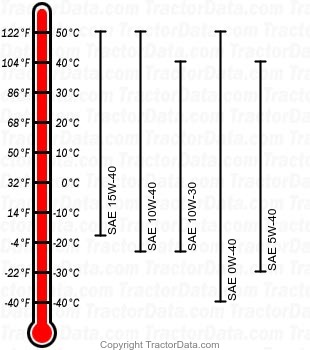

8295R diesel engine oil chart
Oil capacity26.4 qts (1300 axle)
25.0 L
 29.5 qts (1500/ILS)
27.9 L
