Tractors > John Deere > 8270R

John Deere 8270R Transmission



John Deere 8270R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
Series map:
8245R
8270R
8295R
245.0hp
270.0hp
295.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L

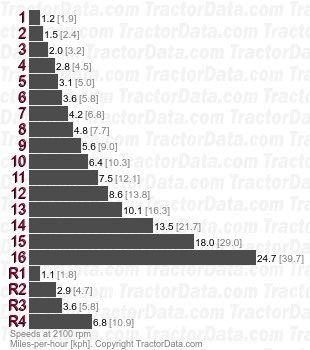

Speeds
With 480/80R46 rear tires. R3 speed at 2300 RPM and R4 speed at 1500 RPM.
8270R PowerShift full power shift speeds

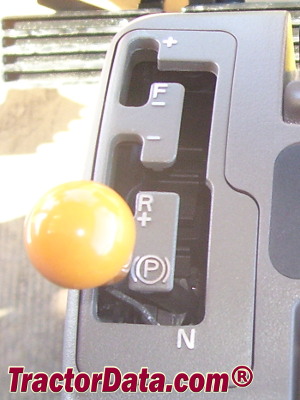

Shift Pattern
John Deere 8270R transmission controls
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
The IVT is available with either a 40 km/h or 50 km/h maximum speed.

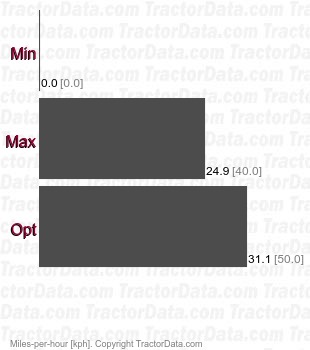

Speeds
With 480/80R46 rear tires.
8270R Infinitely Variable Transmission (IVT) speeds
