John Deere 8225R Transmission


John Deere 8225R tractor photo
2009 - 2010
8R Series
Row-Crop tractor
Series map:
8225R
8245R
225.0hp
245.0hp
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears16 forward and 4 reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
Speeds
With 480/80R46 rear tires. R3 speed at 2300 RPM and R4 speed at 1500 RPM.
8225R PowerShift full power shift speeds
Shift Pattern
John Deere 8225R transmission controls
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
Oil capacity160 qts
151.4 L
 168 qts (ILS)
159.0 L
The IVT is available with either a 40 km/h or 50 km/h maximum speed.

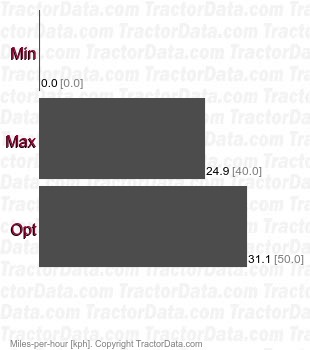

Speeds
With 480/80R46 rear tires.
8225R Infinitely Variable Transmission (IVT)  speeds
