John Deere 3038E Transmission


John Deere 3038E tractor photo
2008 - 2023
Model year
Compact Utility tractor
Series map:
3032E
3038E
31.0hp
36.3hp
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity22 qts*The 2014 printing of the operator manual incorrectly lists the capacity as 14L.
20.8 L
Mechanically-controlled two-range hydrostatic transmission. Tractor must be stopped before shifting ranges.

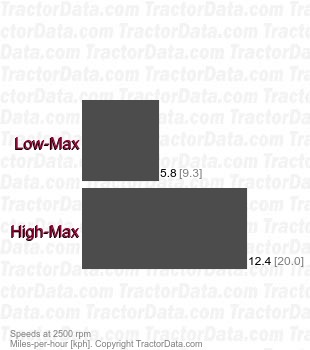

Speeds
3038E  hydrostatic speeds

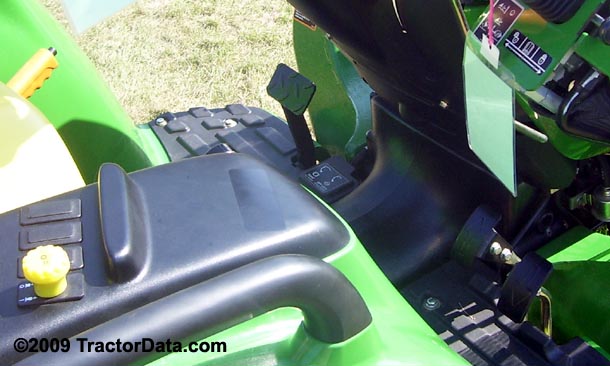

Shift Pattern
John Deere 3038E transmission controls
