John Deere 3032E Engine


John Deere 3032E tractor photo
2008 - 2023
Model year
Compact Utility tractor
Series map:
3032E
3038E
31.0hp
36.3hp
Engine Detail
Yanmar 3TNV86
turbocharged diesel
3-cylinder
liquid-cooled
Displacement95.7 ci
1.6 L
Bore/Stroke3.50x3.54 inches
89 x 90 mm
Power31.0 hp
23.1 kW
Air cleanerdry type
Compression19:1
Rated RPM2400
Torque80 lb-ft
108.5 Nm
Torque RPM1680
Starter volts12
Starter power1.9 hp
1.4 kW
Coolant capacity4.4 qts
4.2 L
Engine Oil

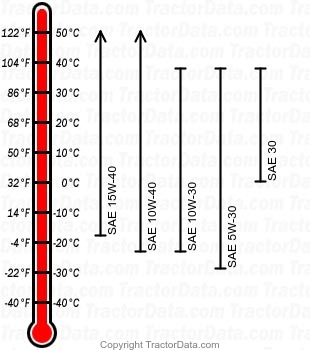

3032E diesel engine oil chart
Oil capacity4.8 qts
4.5 L
