John Deere 5515 Transmission


John Deere 5515 tractor photo
2003 - 2008
Utility tractor
Agritalia built
Series map:
5415
5515
55.2kw
61.1kw
Transmission options
12-speed partially synchronized
24-speed partially synchronized
24-speed two-speed power shift
Transmission
Typepartially synchronized
Gears12 forward and reverse
Clutchdry disc
Four gears (1-4) in three ranges (A, B, C) with mechanical shuttle. Gear shifts are synchronized.

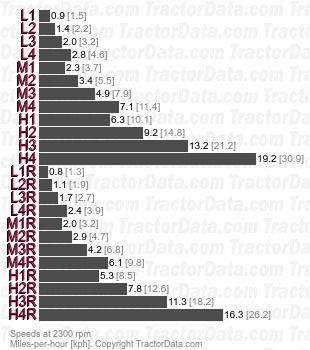

Speeds
With 16.9R30 rear tires
5515  partially synchronized speeds
Transmission
Typepartially synchronized
Gears24 forward and reverse
Clutchdry disc
Mechanical high-low added to base 12-speed transmission.
Transmission
Typetwo-speed power shift
Gears24 forward and 12 reverse
Clutchhydraulic
Four gears (1-4) in three ranges (A, B, C) and electronically-shifted high/low. Left-hand power shuttle lever and push-button high/low shift. Push-button electric declutch button on gear shift allows for gear changes without foot clutch.
