John Deere 5515 Engine


John Deere 5515 tractor photo
2003 - 2008
Utility tractor
Agritalia built
Series map:
5415
5515
55.2kw
61.1kw
Engine Detail
John Deere 4045TAT70
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (net)80 hp
59.7 kW
Rated Power (gross)82 hp
61.1 kW
Compression17.0:1
Rated RPM2300
Idle RPM825-2510
Operating RPM1200-2300
Torque231.6 lb-ft
314.0 Nm
Torque RPM1500
Firing order1-3-4-2
Starterelectric
Starter volts12
Starter power3.8 hp
2.8 kW
Coolant capacity12.6 qts (ROPS)
11.9 L
 13.7 qts (with cab)
13.0 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

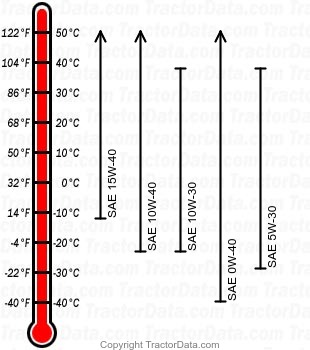

5515 diesel engine oil chart
Oil capacity8.5 qts
8.0 L
