John Deere 5315 Transmission


John Deere 5315 tractor photo
2003 - 2008
Utility tractor
Agritalia built
Series map:
5215
5315
5415
41.8kw
49.6kw
55.2kw
Transmission options
12-speed
8-speed
24-speed
Transmission
Gears12 forward and reverse
Speeds
With 16.9R30 rear tires
5315   speeds
Transmission
Gears8 forward and reverse
Speeds
With 16.9R30 rear tires
5315   speeds

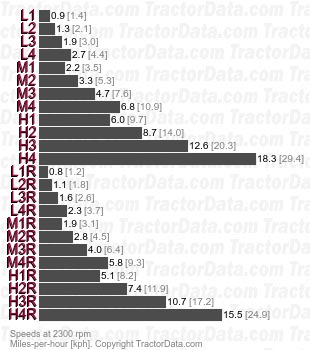

Transmission
Gears24 forward and reverse
Transmission
Gears24 forward and 12 reverse
